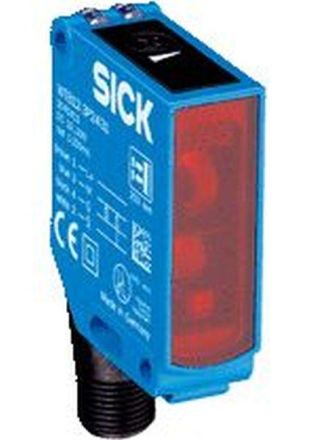

Sick 1044101 WTB12-3N1011S42 Diffuse reflection sensor

Sick 1044101 WTB12-3N1011S42 Diffuse reflection sensor

In stock

SKU: 906157

Price on request

€395

€0

Overview

Small light barriers, W12-3, switching distance max.: 20 mm ... 150 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: NPN, switching type: light switching, connection type: cable with AMP plug, 0.32 m, light transmitter: LED, setting: none, communication interface: -

Property	Value
Ambient temperature:	-40 °C
Design of the switching output:	NPN
With restart lock:	no
Housing material:	Metal
Switching frequency:	1500 Hz
Width of the sensor:	15.6 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	Cable with connector
Button function:	light switching
Sensor length:	42 mm
Equipment protection class:	Protection class 3
With analog communication interface:	no
Light type:	infrared light
Sensor wavelength:	850 nm
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function for downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure message:	no
Height of the sensor:	48.5 mm
Design of the switching function:	other
Material of the optical surface:	Plastic
With communication interface Ethernet:	no
Analog output 4 mA ... 20 mA:	no
With communication interface RS-485:	no
Response time:	0.33 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	20 mm
Max. Output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP66
