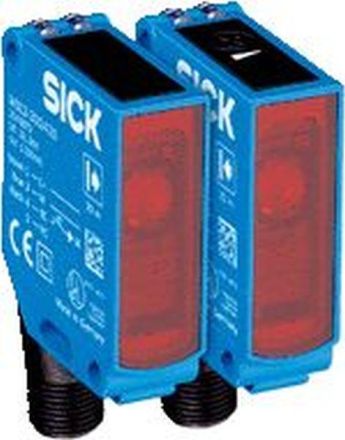

Sick 1044120 WSE12-3P2411S36 through-beam sensor

Sick 1044120 WSE12-3P2411S36 through-beam sensor

In stock

SKU: 905975

Price on request

€357.17

€0

Overview

Small light barriers, W12-3, max. switching distance: 0 m ... 5 m, sensor principle: through-beam light barrier, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -

Property	Value
Design of the switching output:	other
Rated switching distance:	4000 mm
Max. Output current:	100 mA
Protection class (IP):	IP66
Length of the sensor:	42 mm
Width of the sensor:	15.6 mm
Height of the sensor:	48.5 mm
Design of the electrical connection:	M12 connector
With INTERBUS communication interface:	no
With RS-485 communication interface:	no
With Ethernet communication interface:	no
Reflector included in delivery:	no
Analog output 4 mA ... 20 mA:	no
Housing design:	Cuboid
With SSD communication interface:	no
Pre-failure warning:	no
With CANOpen communication interface:	no
With restart lock:	no
Analog output -10 V ... +10 V:	no
Housing material:	metal
Analog output 0 V ... 10 V:	no
Light type:	infrared light
With analog communication interface:	no
With PROFIBUS communication interface:	no
Switching function execution:	antivalent
Light spot:	750 mm²
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Sensor wavelength:	850 nm
Equipment protection class:	Protection class 3
With communication interface RS-422:	no
Max. Switching distance:	5000 mm
Switching frequency:	100 Hz
With AS-Interface communication interface:	no
Response time:	5 ms
With other analog output:	no
With monitoring function for downstream devices:	no
With RS-232 communication interface:	no
With SSI communication interface:	no
With communication interface DeviceNet:	no
Ambient temperature:	-40 °C
Voltage type:	DC
With time function:	no
