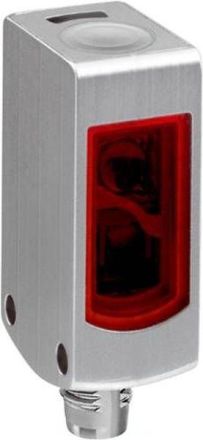

Sick 1046396 WTB4S-3P2232V Diffuse reflection sensor

Sick 1046396 WTB4S-3P2232V Diffuse reflection sensor

In stock

SKU: 905959

Price on request

€313.38

€0

Overview

Miniature light barriers, W4S-3 Inox, switching distance max.: 4 mm ... 120 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: M8 connector, 4-pin, light transmitter: PinPoint LED, setting: teach-in button, communication interface: -

Property	Value
Ambient temperature:	-30 °C
Design of the switching output:	PNP
With restart lock:	no
Switching frequency:	1000 Hz
Width of the sensor:	15.25 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	Connector M8
Button function:	light/dark switching
Sensor length:	22.2 mm
Equipment protection class:	Protection class 3
With analog communication interface:	no
Sensor wavelength:	650 nm
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function of downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure warning:	no
Height of the sensor:	44.9 mm
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	2.5 mm²
With RS-485 communication interface:	no
Response time:	0.5 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	4 mm
Max. output current:	100 mA
Type of voltage:	DC
With time function:	no
Protection class (IP):	IP66
