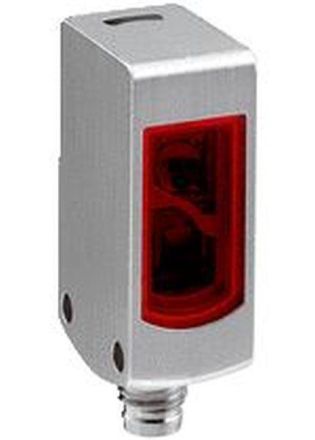

Sick 1046449 WLG4S-3P3432V reflective photoelectric sensor

In stock
SKU: 905433
€325.69
Into a basketIn the basketGo

Overview

Miniature light barriers, W4S-3 Inox Glass, max. switching distance: 0 m ... 5 m, sensor principle: reflection light barrier, detection principle: autocollimation, switching output: PNP, switching type: light/dark switching, connection type: cable with M12 plug, 4-pin, 150 mm, light transmitter: PinPoint LED, setting: teach-in button, communication interface: -

Property Value
Max. switching distance: 5000 mm
Max. Output current: 100 mA
Button function: light/dark switching
Protection class (IP): IP66
Height of the sensor: 49.2 mm
Width of the sensor: 15.25 mm
Length of the sensor: 22.2 mm
Reaction time: 0.5 ms
Switching frequency: 1000 Hz
Laser protection class: other
Type of voltage: DC
Material of the housing: metal
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With communication interface DeviceNet: no
Design of the switching function: antivalent
With communication interface INTERBUS: no
With communication interface Analog: no
With communication interface Ethernet: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With communication interface PROFIBUS: no
Reflector included in delivery: no
Suitable for Safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: Red light unpolarized
Material of the optical surface: other
With communication interface RS-422: no
With communication interface RS-232: no
Design of the electrical connection: Bus cover
Design of the switching output: PNP
Equipment protection class: Protection class 3
Housing design: Cuboid
Ambient temperature: -30 °C
With monitoring function for downstream devices: no
Pre-failure warning: no
Sensor wavelength: 650 nm
With restart lock: no

Characteristics

Design of the switching functionAntivalent
Switching frequency1000 Hz
HAB1046449 WLG4S-3P3432V
ManufacturerSick
HAN1046449
GTIN4047084171888
Design of the switching outputPNP
Design of the electrical connectionBus hood
Width of the sensor15.25 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor49.2 mm
Length of the sensor22.2 mm
IP protection)IP66
Voltage typeDC
Ambient temperature-30°C
Housing materialMetal
