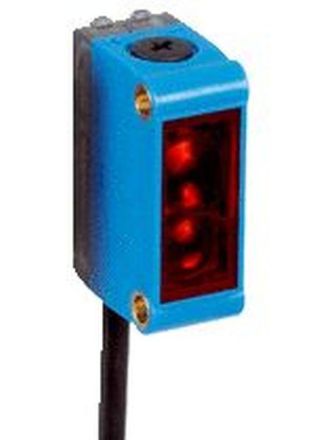

Sick 1050712 GTE6-P1211 Diffuse reflection sensor

Sick 1050712 GTE6-P1211 Diffuse reflection sensor

In stock

SKU: 905938

Price on request

€106.69

€0

Overview

Miniature light barriers, G6, max. switching distance: 300 mm, sensor principle: reflection light sensor, detection principle: energetic, switching output: PNP, switching type: light/dark switching, connection type: cable, 3-core, 2 m, light transmitter: PinPoint LED, type of light: visible red light, housing material: ABS/PC, setting: potentiometer

Property	Value
Range of the protective field:	3 m
Rated control supply voltage Us at DC:	10 to 30 V
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	31.5 mm
Width of sensor:	12 mm
Height of sensor:	21 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Switching distance:	250 mm
Response time:	1,250 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With SSI communication interface:	no
With monitoring function for downstream devices:	no
Analog output 0 V ... 10 V:	no
Sensor wavelength:	650 nm
With RS-232 communication interface:	no
With AS-Interface communication interface:	no
Number of semiconductor outputs with signaling function:	1
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical connection:	Cable
Design of the switching output:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cuboid
Light type:	Polarized red light
Switching frequency:	500 Hz
Type of voltage:	DC
Ambient temperature:	-25 to +55 °C
Pre-failure warning:	no
Housing material:	Plastic
Cable sheath material:	Polyvinyl chloride (PVC)
With time function:	no
