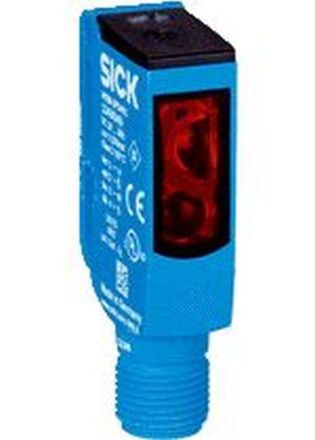

Sick 1052172 WTB9-3P2411S14 Diffuse reflection sensor

Sick 1052172 WTB9-3P2411S14 Diffuse reflection sensor

In stock

SKU: 906168

Price on request

€266.74

€0

Overview

Small light barriers, W9, switching distance max.: 20 mm ... 800 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -

Property	Value
Ambient temperature:	-40 °C
Design of the switching output:	PNP
With restart lock:	no
Housing material:	Plastic
Switching frequency:	200 Hz
Width of the sensor:	12.2 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	Connector M12
Button function:	light/dark switching
Sensor length:	23.6 mm
Equipment protection class:	Protection class 3
With analog communication interface:	no
Light type:	infrared light
Sensor wavelength:	850 nm
With SSI communication interface:	no
With communication interface RS-422:	no
Analog output 0 V ... 10 V:	no
With monitoring function for downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure warning:	no
Height of the sensor:	52.2 mm
Material of the optical surface:	Plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	40 mm²
With communication interface RS-485:	no
Response time:	2.5 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	20 mm
Max. Output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP66
