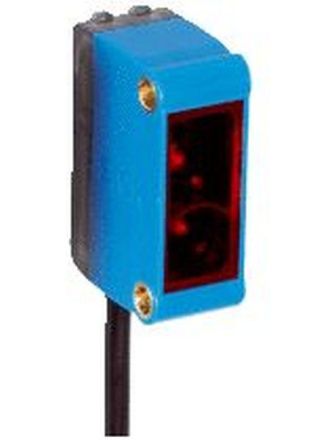

Miniature light barriers, G6, max. switching distance: 6 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light switching, connection type: cable with M12 plug, 4-pin, light transmitter: PinPoint LED, type of light: visible red light, housing material: ABS/PC, setting: none
| Property | Value |
| Rated switching distance: | 5000 mm |
| Max. switching distance: | 6000 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Button function: | light switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 31.5 mm |
| Width of sensor: | 12 mm |
| Length of sensor: | 21 mm |
| Reaction time: | 0.625 ms |
| Switching frequency: | 1000 Hz |
| Laser protection class: | other |
| Type of voltage: | DC |
| Material of the housing: | Plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| With communication interface Analog: | no |
| With communication interface Ethernet: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With communication interface PROFIBUS: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light unpolarized |
| Material of the optical surface: | Plastic |
| With communication interface RS-422: | no |
| With communication interface RS-232: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the electrical connection: | M12 connector |
| Design of the switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| Housing design: | Cuboid |
| Max. Output current at the safe output: | 100 mA |
| Ambient temperature: | -25 to +55 °C |
| With monitoring function for downstream devices: | no |
| Pre-failure message: | no |
| Sensor wavelength: | 650 nm |
| With restart lock: | no |
