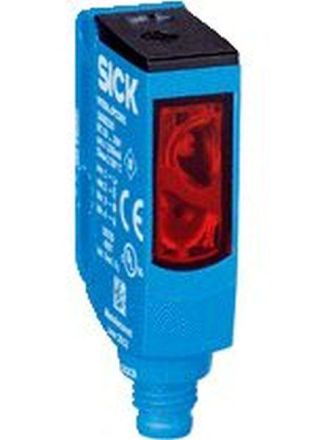

Sick 1058150 WTB9L-3P2291 Diffuse reflection sensor

Sick 1058150 WTB9L-3P2291 Diffuse reflection sensor

In stock

SKU: 905907

Price on request

€400.96

€0

Overview

Small light barriers, W9, max. switching distance: 25 mm ... 400 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: connector M8, 4-pin, light transmitter: laser, setting: potentiometer, laser class: 2, communication interface: -

Property	Value
Scanning range:	25 to 400 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP66
Length of sensor:	23.6 mm
Width of sensor:	12.2 mm
Height of sensor:	49.8 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Switching distance:	25 mm
Response time:	1 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With communication interface SSI:	no
With monitoring function of downstream devices:	no
Analog output 0 V ... 10 V:	no
Wavelength of the sensor:	650 nm
With communication interface RS-232:	no
With communication interface AS-Interface:	no
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical Connection:	M8 connector
Switching output design:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cuboid
Laser protection class:	Class 2
Light spot:	0.9 mm²
Switching frequency:	500 Hz
Type of voltage:	DC
Ambient temperature:	-10 °C
Pre-failure warning:	no
Material of the optical surface:	Plastic
Material of the housing:	Plastic
With time function:	no
