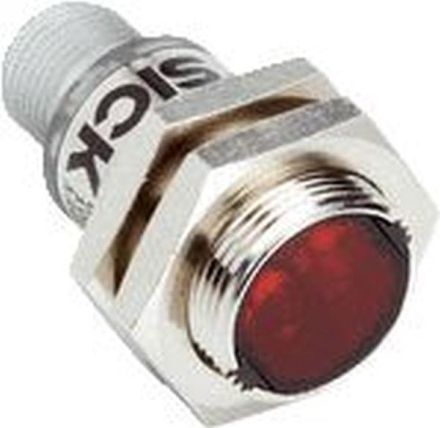

Sick 1058199 GRL18S-P2331 reflection photoelectric sensor

In stock
SKU: 905942
€85.54
Into a basketIn the basketGo

Overview

Round light barriers, GR18S, max. switching distance: 0.03 m ... 7.2 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light switching, connection type: M12 connector, 3-pin, light transmitter: PinPoint LED, setting: none, communication interface: -, included in delivery: fastening nut (2 x)

Property Value
Rated switching distance: 30 mm
Max. switching distance: 7200 mm
Max. Output current: 100 mA
Button function: light switching
Protection class (IP): IP67
Height of the sensor: 18 mm
Width of the sensor: 18 mm
Length of the sensor: 38.1 mm
Reaction time: 0.5 ms
Switching frequency: 1000 Hz
Laser protection class: other
Type of voltage: DC
Material of the housing: metal
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With communication interface DeviceNet: no
With communication interface INTERBUS: no
With analog communication interface: no
With Ethernet communication interface: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With PROFIBUS communication interface: no
Reflector included in delivery: no
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: Red light unpolarized
Material of the optical surface: Plastic
With communication interface RS-422: no
With communication interface RS-232: no
Design of the electrical connection: M12 connector
Design of the switching output: PNP
Equipment protection class: Protection class 3
Housing design: Smooth cylinder
Ambient temperature: -25 °C
With monitoring function of downstream devices: no
Pre-failure warning: no
Sensor wavelength: 650 nm
With restart lock: no

Characteristics

Switching frequency1000 Hz
HABGRL18S-P2331
ManufacturerSick
HAN1058199
GTIN4047084240164
Design of the switching outputPNP
Design of the electrical connectionConnector M12
Width of the sensor18 mm
Suitable for security functionsNo
Housing designCylinder smooth
Height of the sensor18 mm
Length of the sensor38.1 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-25°C
Housing materialMetal
