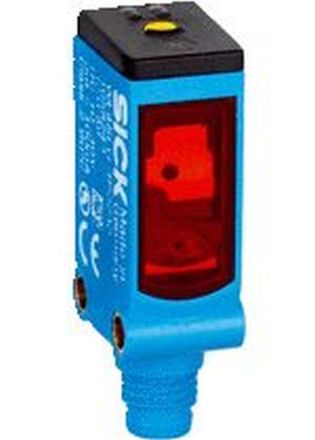

Sick 1058245 WL4SLG-3P3232 reflective photoelectric sensor

Sick 1058245 WL4SLG-3P3232 reflective photoelectric sensor

In stock

SKU: 906321

Price on request

€383.35

€0

Overview

Miniature light barriers, W4SLG-3, max. switching distance: 0 m ... 4.5 m, sensor principle: reflection light barrier, switching output: PNP, switching type: light/dark switching, connection type: cable with plug M8, 4-pin 120 mm, light transmitter: laser, type of light: visible red light, setting: simple teach-in button

Property	Value
Max. switching distance:	4500 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP66
Height of the sensor:	41.8 mm
Width of the sensor:	12.2 mm
Length of the sensor:	17.3 mm
Reaction time:	0.5 ms
Switching frequency:	1000 Hz
Laser protection class:	Class 1
Type of voltage:	DC
Material of the housing:	Plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	Cable with connector
Design of the switching output:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cuboid
Ambient temperature:	-10 °C
With monitoring function of downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	650 nm
With restart lock:	no
