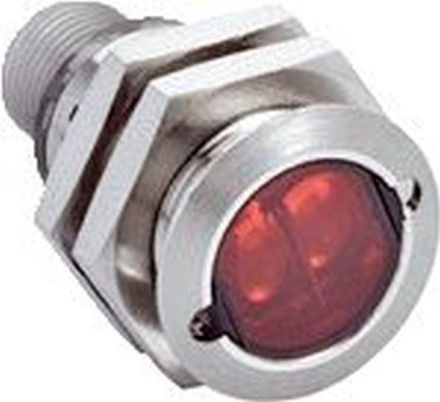

Sick 1059435 GRTE18S-F231Z diffuse reflection sensor

Sick 1059435 GRTE18S-F231Z diffuse reflection sensor

In stock

SKU: 905930

Price on request

€90.48

€0

Overview

Circular light barriers, GR18S, max. switching distance: 3 mm ... 115 mm, sensor principle: reflection light sensor, detection principle: energetic, switching output: PNP, switching type: dark switching, connection type: M12 connector, 3-pin, light transmitter: PinPoint LED, setting: potentiometer, communication interface: -, included in delivery: fastening nut (2 x)

Property	Value
Scanning range:	5 to 100 mm
Rated control supply voltage Us at DC:	10 to 30 V
Max. Output current:	100 mA
Button function:	dark switching
Protection class (IP):	IP67
Length of sensor:	18 mm
Width of sensor:	18 mm
Height of sensor:	38.1 mm
Diameter of sensor:	18 mm
With analog communication interface:	no
With communication interface RS-422:	no
Max. Switching distance:	100 mm
Response time:	1 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With SSI communication interface:	no
With monitoring function for downstream devices:	no
Analog output 0 V ... 10 V:	no
Sensor wavelength:	650 nm
With RS-232 communication interface:	no
With AS-Interface communication interface:	no
Number of semiconductor outputs with signaling function:	1
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cylinder, thread
Light type:	Polarized red light
Switching frequency:	500 Hz
Type of voltage:	DC
Ambient temperature:	-25 to +55 °C
Pre-failure warning:	no
Housing material:	metal
With time function:	no
