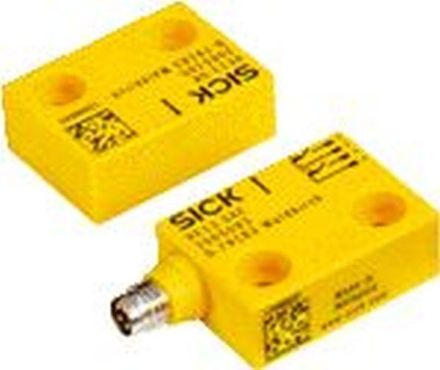

Sick 1059503 RE13-SAC Magnetic switch

In stock

SKU: 905965

Price on request

€79.09

€0

Overview

Non-contact safety switch, RE1, system part: sensor with actuator, number of normally open contacts: 2, number of normally closed contacts: 0, number of signal contacts: 0, connection type detail: connector, M8, 4-pin, safe series connection: with Flexi Loop (with diagnostics), status display: no

Property	Value
Suitable for safety functions:	no
Length of the sensor:	13 mm
Height of the sensor:	36 mm
Width of the sensor:	26 mm
Protection class (IP):	IP67
Design of the electrical connection:	M8 connector
Design of the switching output:	Reed contact
Housing design:	Cuboid
Secured switching distance OFF:	20 mm
Secured switching distance ON:	7 mm
Ambient temperature:	-20 °C
Cross-circuit/short-circuit detection possible:	no
Switching distance:	7 mm
With monitoring function for downstream devices:	no
Housing material:	Plastic
With status display:	no
