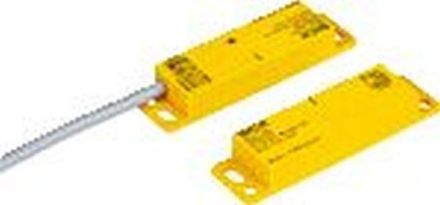

Sick 1059511 RE27-SA10L Magnetic safety sensor

In stock

SKU: 905970

Price on request

€104.97

€0

Overview

Non-contact safety switch, RE2, system part: sensor with actuator, number of normally open contacts: 2, number of normally closed contacts: 0, number of signal contacts: 1, connection type detail: cable, cable length: 10 m, safe series connection: none, only individual wiring (with diagnostics), status display: yes

Property	Value
Suitable for safety functions:	no
Length of the sensor:	13 mm
Height of the sensor:	88 mm
Width of the sensor:	25 mm
Protection class (IP):	IP67
Number of contact outputs with signaling function:	1
Design of the electrical connection:	Cable
Design of the switching output:	Reed contact
Housing design:	Cuboid
Secured switching distance OFF:	20 mm
Secured switching distance ON:	9 mm
Ambient temperature:	-20 °C
Cross-circuit/short-circuit detection possible:	no
Switching distance:	9 mm
With monitoring function for downstream devices:	no
Housing material:	Plastic
With status display:	no
