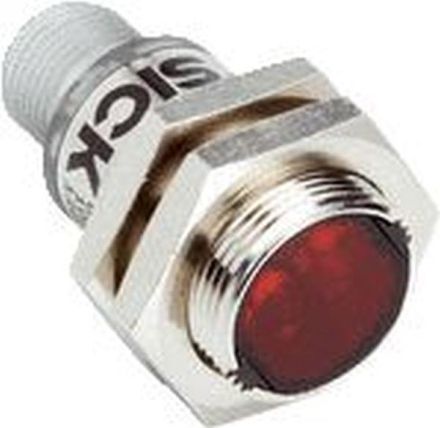

Sick 1059549 GRSE18S-F2331 through-beam sensor

Sick 1059549 GRSE18S-F2331 through-beam sensor

In stock

SKU: 905929

Price on request

€119.75

€0

Overview

Circular light barriers, GR18S, max. switching distance: 0 m ... 15 m, sensor principle: through-beam light barrier, switching output: PNP, switching type: dark switching, connection type: M12 connector, 3-pin, light transmitter: PinPoint LED, setting: none, communication interface: -, included in delivery: fastening nut (4 x)

Property	Value
Design of the switching output:	PNP
Rated switching distance:	10000 mm
Rated control supply voltage Us at DC:	1 to 30 V
Max. Output current:	100 mA
Protection class (IP):	IP67
Length of sensor:	38.1 mm
Width of sensor:	18 mm
Height of sensor:	18 mm
Diameter of sensor:	18 mm
Design of electrical connection:	M12 connector
With INTERBUS communication interface:	no
With communication interface RS-485:	no
With communication interface Ethernet:	no
Reflector included in delivery:	no
Analog output 4 mA ... 20 mA:	no
Housing design:	Cylinder, thread
With communication interface SSD:	no
Pre-failure message:	no
With CANOpen communication interface:	no
With restart lock:	no
Analog output -10 V ... +10 V:	no
Housing material:	metal
Analog output 0 V ... 10 V:	no
Light type:	polarized red light
With analog communication interface:	no
With PROFIBUS communication interface:	no
Light spot:	250 mm²
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Sensor wavelength:	650 nm
Equipment protection class:	Protection class 3
With communication interface RS-422:	no
Max. Switching distance:	15000 mm
Switching frequency:	1000 Hz
With AS-Interface communication interface:	no
Response time:	0.500 ms
With other analog output:	no
With monitoring function for downstream devices:	no
With RS-232 communication interface:	no
Number of semiconductor outputs with signaling function:	1
With communication interface SSI:	no
With communication interface DeviceNet:	no
Ambient temperature:	-25 to +55 °C
Type of voltage:	DC
With time function:	no
