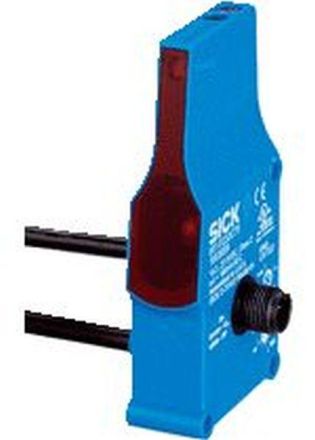

Sick 1063102 IRT-P212C73 Diffuse reflection sensor

Sick 1063102 IRT-P212C73 Diffuse reflection sensor

In stock

SKU: 906174

Price on request

€281.90

€0

Overview

MultiTask light barriers, ZoneControl, sub-product family: IR, switching distance max.: 60 mm 900 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, connection type: plug

Property	Value
Ambient temperature:	-40 °C
Design of the switching output:	PNP
With restart lock:	no
Material of the housing:	Plastic
Switching frequency:	250 Hz
Width of the sensor:	20.6 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	Connector M12
Length of the sensor:	48.9 mm
Equipment protection class:	Protection class 3
With analogue communication interface:	no
Light type:	Infrared light
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function for downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
With other analog output:	no
Pre-failure message:	no
Height of the sensor:	99.2 mm
Execution of the switching function:	other
With communication interface Ethernet:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	20 mm²
With communication interface RS-485:	no
Response time:	2 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
Max. switching distance:	60 mm
Max. output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP67
