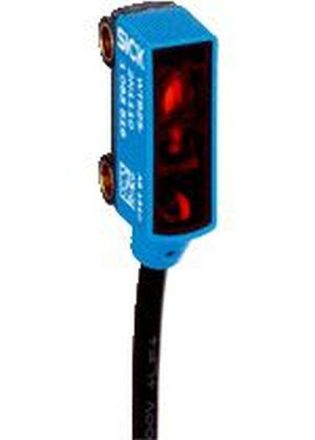

Sick 1063814 WTB2S-2P1030S13 Diffuse reflection sensor

Sick 1063814 WTB2S-2P1030S13 Diffuse reflection sensor

In stock

SKU: 906115

Price on request

€210.74

€0

Overview

Miniature light barriers, W2S-2, switching distance max.: 3 mm ... 30 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light switching, connection type: cable, 3-wire, 3.5 m, light transmitter: PinPoint LED, setting: none, communication interface: -

Property	Value
Ambient temperature:	-25 °C
Design of the switching output:	PNP
With restart lock:	no
Housing material:	Plastic
Switching frequency:	1200 Hz
Width of the sensor:	7.7 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Type of electrical connection:	Cable
Button function:	light switching
Sensor length:	13.5 mm
With analog communication interface:	no
Sensor wavelength:	640 nm
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure message:	no
Height of the sensor:	21.8 mm
Design of the switching function:	other
Material of the optical surface:	plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	3 mm²
With RS-485 communication interface:	no
Reaction time:	0.4 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	3 mm
Max. Output current:	50 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP67
