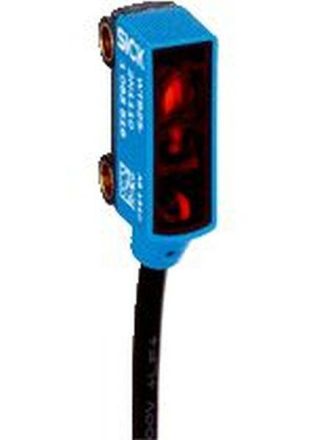

Sick 1064593 WL2S-2F3130 reflective photoelectric sensor

Sick 1064593 WL2S-2F3130 reflective photoelectric sensor

In stock

SKU: 906310

Price on request

€172.42

€0

Overview

Miniature light barriers, W2S-2, max. switching distance: 0 m ... 1.2 m, sensor principle: reflection light barrier, detection principle: autocollimation, switching output: PNP, switching type: dark switching, connection type: cable with M8 plug, 3-pin, 200 mm, light transmitter: PinPoint LED, setting: none, communication interface: -

Property	Value
Max. switching distance:	1200 mm
Max. Output current:	50 mA
Button function:	dark switching
Protection class (IP):	IP67
Height of the sensor:	21.8 mm
Width of the sensor:	7.7 mm
Length of the sensor:	13.5 mm
Reaction time:	0.5 ms
Switching frequency:	1000 Hz
Laser protection class:	other
Type of voltage:	DC
Material of the housing:	plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical Surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	Cable with connector
Design of the switching output:	PNP
Housing design:	Cuboid
Ambient temperature:	-25 °C
With monitoring function for downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	640 nm
With restart lock:	no
