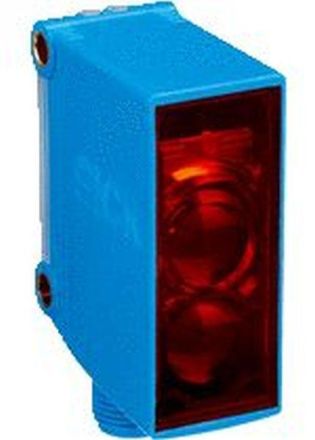

Sick 1064702 GL10-P4551 reflective sensor

In stock
SKU: 905918
€121.12
Into a basketIn the basketGo

Overview

Small light barriers, G10, max. switching distance: 0.15 m ... 12 m, 0.15 m ... 10 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light switching, connection type: M12 connector, 4-pin, light transmitter: PinPoint LED, setting: none, communication interface: -

Property Value
Rated switching distance: 150 mm
Max. switching distance: 10000 mm
Max. Output current: 100 mA
Rated control supply voltage Us at DC: 10 to 30 V
Button function: light switching
Protection class (IP): IP67
Height of sensor: 50 mm
Width of sensor: 20 mm
Length of sensor: 39 mm
Reaction time: 1 ms
Switching frequency: 500 Hz
Laser protection class: other
Type of voltage: DC
Material of the housing: Plastic
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With communication interface DeviceNet: no
With communication interface INTERBUS: no
With communication interface Analog: no
With communication interface Ethernet: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With communication interface PROFIBUS: no
Reflector included in delivery: no
Suitable for Safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: Red light unpolarized
Material of the optical surface: other
With communication interface RS-422: no
With communication interface RS-232: no
Number of semiconductor outputs with reporting function: 1
Design of the electrical connection: Connector M12
Design of the switching output: PNP
Equipment protection class: Protection class 3
Housing design: Cuboid
Ambient temperature: -30 to +60 °C
With monitoring function for downstream devices: no
Pre-failure warning: no
Sensor wavelength: 625 nm
With restart lock: no

Characteristics

Switching frequency500 Hz
HABGL10-P4551
ManufacturerSick
HAN1064702
GTIN4047084299100
Design of the switching outputPNP
Design of the electrical connectionConnector M12
Rated control supply voltage Us at DC10 to 30 V
Width of the sensor20 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor50 mm
Length of the sensor39 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-30 to +60 °C
Housing materialPlastic
