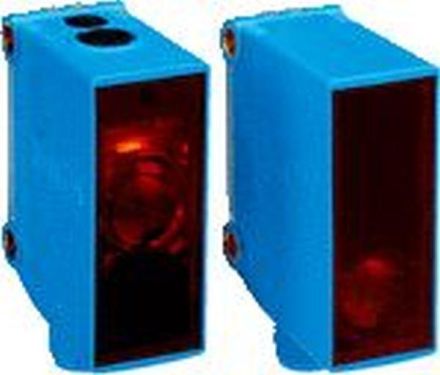

Sick 1064706 GSE10-P4211 through-beam sensor

In stock
SKU: 905932
€165.58
Into a basketIn the basketGo

Overview

Small light barriers, G10, max. switching distance: 0 m ... 40 m, sensor principle: through-beam light barrier, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: PinPoint LED, setting: potentiometer, communication interface: -

Property Value
Design of the switching output: PNP
Rated switching distance: 35000 mm
Rated control supply voltage Us at DC: 10 to 30 V
Max. Output current: 100 mA
Protection class (IP): IP67
Length of sensor: 39 mm
Width of sensor: 20 mm
Height of sensor: 50 mm
Design of electrical connection: M12 connector
With INTERBUS communication interface: no
With RS-485 communication interface: no
With Ethernet communication interface: no
Reflector included in delivery: no
Analog output 4 mA ... 20 mA: no
Housing design: Cuboid
With SSD communication interface: no
Pre-failure message: no
With CANOpen communication interface: no
With Restart lock: no
Analog output -10 V ... +10 V: no
Housing material: plastic
Analog output 0 V ... 10 V: no
Light type: polarized red light
With analog communication interface: no
With PROFIBUS communication interface: no
Light spot: 180 mm²
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Sensor wavelength: 625 nm
Equipment protection class: Protection class 3
With communication interface RS-422: no
Max. Switching distance: 40000 mm
Switching frequency: 1000 Hz
With communication interface AS-Interface: no
Reaction time: 0.500 ms
With other analog output: no
With monitoring function of downstream devices: no
With communication interface RS-232: no
Number of semiconductor outputs with signaling function: 1
With communication interface SSI: no
With communication interface DeviceNet: no
Ambient temperature: -30 to +60 °C
Type of voltage: DC
With time function: no

Characteristics

Switching frequency1000 Hz
HABGSE10-P4211
ManufacturerSick
HAN1064706
GTIN4047084307454
Design of the switching outputPNP
Design of the electrical connectionConnector M12
Rated control supply voltage Us at DC10 to 30 V
Width of the sensor20 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor50 mm
Length of the sensor39 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-30 to +60 °C
Housing materialPlastic
