Catalog

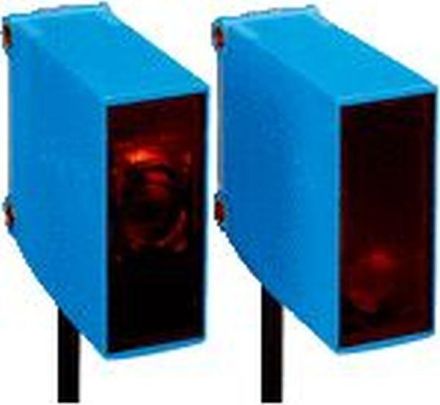

Sick 1065911 GSE10-R3712 through-beam sensor

In stock
SKU: 905933
€298.32
Into a basketIn the basketGo

Overview

Small light barriers, G10, max. switching distance: 0 m ... 40 m, sensor principle: one-way light barrier, switching output: relay, connection type: cable, 5-core, 2 m, light transmitter: PinPoint LED, setting: none, communication interface: -, included in delivery: mounting bracket BEF-G10UC01 (2x)

Property Value
Design of the switching output: Relay contact
Rated switching distance: 35000 mm
Rated control supply voltage Us at DC: 24 to 240 V
Max. Output current: 100 mA
Protection class (IP): IP67
Length of the sensor: 51.5 mm
Width of the sensor: 20 mm
Height of the sensor: 50 mm
Type of electrical connection: Cable
With communication interface INTERBUS: no
With communication interface RS-485: no
With Ethernet communication interface: no
Reflector included in delivery: no
Analog output 4 mA ... 20 mA: no
Housing design: Cuboid
With SSD communication interface: no
Pre-failure message: no
With CANOpen communication interface: no
With Restart lock: no
Analog output -10 V ... +10 V: no
Housing material: plastic
Analog output 0 V ... 10 V: no
Light type: polarized red light
With analog communication interface: no
With PROFIBUS communication interface: no
Light spot: 180 mm²
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Sensor wavelength: 625 nm
Equipment protection class: Protection class 2
With communication interface RS-422: no
Max. Switching distance: 40000 mm
Switching frequency: 20 Hz
With AS-Interface communication interface: no
Response time: 10 ms
With other analog output: no
With monitoring function for downstream devices: no
With RS-232 communication interface: no
Number of semiconductor outputs with signaling function: 1
With communication interface SSI: no
With communication interface DeviceNet: no
Cable sheath material: Polyvinyl chloride (PVC)
Ambient temperature: -30 to +60 °C
Type of voltage: AC/DC
With time function: no

Characteristics

Switching frequency20 Hz
HABGSE10-R3712
ManufacturerSick
HAN1065911
GTIN4047084333873
Design of the switching outputRelay contact
Design of the electrical connectionCable
Rated control supply voltage Us at DC24 to 240 V
Width of the sensor20 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor50 mm
Length of the sensor51.5 mm
IP protection)IP67
Voltage typeAC/DC
Ambient temperature-30 to +60 °C
Housing materialPlastic
Sick 1065911 GSE10-R3712 through-beam sensor
Sick 1065911 GSE10-R3712 through-beam sensor
€298.32
Into a basketIn the basketGo
