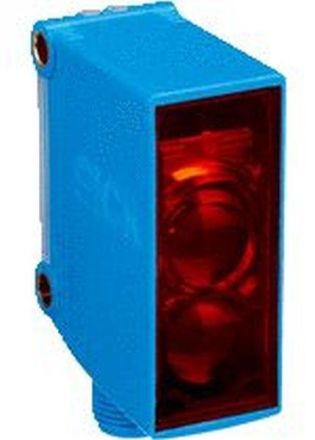

Sick 1071153 GL10-F4551 reflective sensor

Sick 1071153 GL10-F4551 reflective sensor

In stock

SKU: 906330

Price on request

€123.86

€0

Overview

Small light barriers, G10, max. switching distance: 0.15 m ... 12 m, 0.15 m ... 10 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light switching, connection type: M12 connector, 4-pin, light transmitter: PinPoint LED, setting: none, communication interface: -

Property	Value
Rated switching distance:	150 mm
Max. switching distance:	10000 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Height of sensor:	50 mm
Width of sensor:	20 mm
Length of sensor:	39 mm
Reaction time:	1 ms
Switching frequency:	500 Hz
Laser protection class:	other
Type of voltage:	DC
Material of the housing:	plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical Area:	other
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Equipment protection class:	Protection class 3
Housing design:	Cuboid
Ambient temperature:	-30 °C
With monitoring function of downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	625 nm
With restart lock:	no
