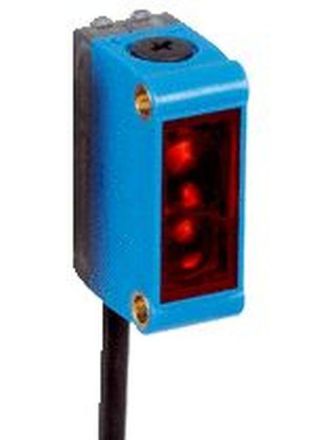

Sick 1073737 GTB6-P0211S52 Diffuse reflection sensor

In stock
SKU: 906108
€184.74
Into a basketIn the basketGo

Overview

Miniature light barriers, G6, switching distance max.: 5 mm ... 250 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: cable with M8 plug, 4-pin, light transmitter: PinPoint LED, light type: visible red light, housing material: ABS/PC, setting: potentiometer

Property Value
Ambient temperature: -30 °C
Design of the switching output: PNP
With restart lock: no
Housing material: Plastic
Switching frequency: 1000 Hz
Width of sensor: 12 mm
With communication interface RS-232: no
With communication interface DeviceNet: no
Analog output -10 V ... +10 V: no
With communication interface INTERBUS: no
Design of the electrical connection: Cable with connector
Button function: light/dark switching
Length of the sensor: 21 mm
Equipment protection class: Protection class 3
With analog communication interface: no
Sensor wavelength: 650 nm
With SSI communication interface: no
With RS-422 communication interface: no
Analog output 0 V ... 10 V: no
With monitoring function of downstream devices: no
With communication interface PROFIBUS: no
Suitable for safety functions: no
With communication interface CANOpen: no
With communication interface AS-Interface: no
Housing design: Cuboid
With other Analog output: no
Pre-failure warning: no
Height of the sensor: 31.5 mm
Design of the switching function: other
Material of the optical surface: plastic
With Ethernet communication interface: no
Analog output 4 mA ... 20 mA: no
Light spot: 6 mm²
With communication interface RS-485: no
Response time: 0.625 ms
Reflector included in delivery: no
Analog output 0 mA ... 20 mA: no
With communication interface SSD: no
Max. switching distance: 5 mm
Max. Output current: 100 mA
Voltage type: DC
With time function: no
Protection class (IP): IP67

Characteristics

Design of the switching functionOther
Switching frequency1000 Hz
HABGTB6-P0211S52
ManufacturerSick
HAN1073737
GTIN4047084344411
Design of the switching outputPNP
Design of the electrical connectionCable with connector
Width of the sensor12 mm
Suitable for security functionsNo
Housing designCuboid
Height of the sensor31.5 mm
Length of the sensor21 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-30°C
Housing materialPlastic
