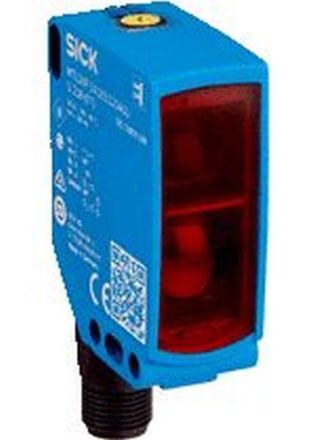

Sick 1218626 WTB16P-24161120A00 Diffuse reflection sensor

Sick 1218626 WTB16P-24161120A00 Diffuse reflection sensor

In stock

SKU: 906445

Price on request

€292.85

€0

Overview

Small light barriers, W16, switching distance max.: 10 mm ... 1,000 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: push-pull: PNP/NPN, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: PinPoint LED, light type: visible red light, housing material: VISTAL®, setting: teach-in button, cable, potentiometer, push-turn element, communication interface: IO-Link, smart sensor: enhanced sensing (basic logic), efficient communication, smart task

Property	Value
Ambient temperature:	-40 °C
Version of the Switching output:	other
With restart lock:	no
Material of the housing:	plastic
Switching frequency:	1000 Hz
Width of the sensor:	20 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With INTERBUS communication interface:	no
Design of the electrical connection:	M12 connector
Button function:	light/dark switching
Length of the sensor:	42 mm
Equipment protection class:	Protection class 3
With analog communication interface:	no
Sensor wavelength:	635 nm
With communication interface SSI:	no
With communication interface RS-422:	no
Analog output 0 V ... 10 V:	no
With monitoring function for downstream devices:	no
With communication interface PROFIBUS:	no
Suitable for safety functions:	no
With communication interface CANOpen:	no
With communication interface AS-Interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure message:	no
Height of the sensor:	55.7 mm
Switching function design:	Normally open (NO)
Material of the optical surface:	Plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	6 mm²
With communication interface RS-485:	no
Reaction time:	0.5 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. Switching distance:	10 mm
Max. output current:	100 mA
Voltage type:	DC
With time function:	no
