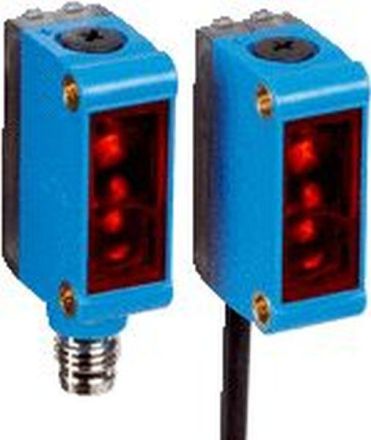

Sick 2080494 GE6-P4511S55 through-beam sensor

Sick 2080494 GE6-P4511S55 through-beam sensor

In stock

SKU: 905984

Price on request

€104.17

€0

Overview

Miniature light barriers, G6, max. switching distance: 0 m ... 15 m, sensor principle: through-beam light barrier, switching output: PNP, switching type: light switching, connection type: connector M8, 4-pin, light transmitter: PinPoint LED, type of light: visible red light, housing material: ABS/PC, setting: none

Property	Value
Design of the switching output:	PNP
Rated switching distance:	10000 mm
Max. Output current:	100 mA
Protection class (IP):	IP67
Length of the sensor:	21 mm
Width of the sensor:	12 mm
Height of the sensor:	31.5 mm
Design of the electrical connection:	M8 connector
With communication interface INTERBUS:	no
With communication interface RS-485:	no
With Ethernet communication interface:	no
Reflector included in delivery:	no
Analog output 4 mA ... 20 mA:	no
Housing design:	Cuboid
With SSD communication interface:	no
Pre-failure message:	no
With CANOpen communication interface:	no
With Restart lock:	no
Analog output -10 V ... +10 V:	no
Housing material:	plastic
Analog output 0 V ... 10 V:	no
Light type:	polarized red light
With analog communication interface:	no
With PROFIBUS communication interface:	no
Light spot:	375 mm²
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Sensor wavelength:	650 nm
Equipment protection class:	Protection class 3
With communication interface RS-422:	no
Max. Switching distance:	15000 mm
Switching frequency:	1000 Hz
With communication interface AS-Interface:	no
Response time:	0.5 ms
With other analog output:	no
With monitoring function of downstream devices:	no
With communication interface RS-232:	no
With communication interface SSI:	no
With communication interface DeviceNet:	no
Ambient temperature:	-25 °C
Voltage type:	DC
With time function:	no
