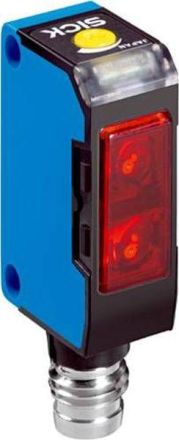

Sick 6011050 WT150-P460 with background suppression diffuse reflection sensor

Sick 6011050 WT150-P460 with background suppression diffuse reflection sensor

In stock

SKU: 905494

Price on request

€265.75

€0

Overview

Miniature light barriers, W150, switching distance max.: 2 mm ... 100 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: connector M8, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -, included in delivery: mounting bracket BEF-W150-A

Property	Value
Ambient temperature:	-25 to +55 °C
Design of the switching output:	PNP
With restart lock:	no
Material of the housing:	Plastic
Switching frequency:	1000 Hz
Width of the sensor:	10 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical Connection:	Connector M8
Button function:	light/dark switching
Length of sensor:	18 mm
Equipment protection class:	Protection class 2
With analog communication interface:	no
With SSI communication interface:	no
With RS-422 communication interface:	no
Triangulation:	Background suppression
Analog output 0 V ... 10 V:	no
With monitoring function of downstream devices:	no
With communication interface PROFIBUS:	no
Suitable for safety functions:	no
With communication interface CANOpen:	no
With communication interface AS-Interface:	no
Housing design:	Cuboid
With other Analog output:	no
Pre-failure warning:	no
Height of the sensor:	28 mm
Design of the switching function:	other
Material of the optical surface:	plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With RS-485 communication interface:	no
Reaction time:	0.5 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Rated control supply voltage Us at DC:	10 to 30 V
Max. switching distance:	100 mm
Max. Output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP67
