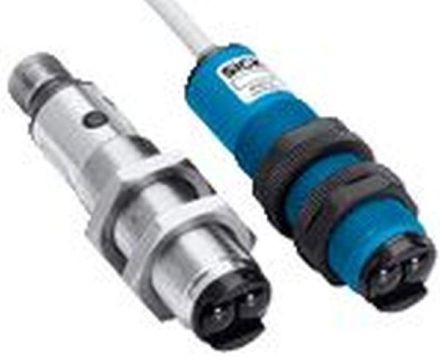

Sick 6013605 VL18-4P3640 reflective photoelectric sensor

Sick 6013605 VL18-4P3640 reflective photoelectric sensor

In stock

SKU: 906385

Price on request

€109.47

€0

Overview

Circular light barriers, V18, max. switching distance: 0.05 m ... 3.7 m, sensor principle: reflection light barrier, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: LED, setting: none, communication interface: -

Property	Value
Rated switching distance:	50 mm
Max. switching distance:	3700 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Height of sensor:	18 mm
Width of sensor:	18 mm
Length of sensor:	78 mm
Reaction time:	2 ms
Switching frequency:	250 Hz
Laser protection class:	other
Type of voltage:	DC
Material of the housing:	plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical Surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Equipment protection class:	Protection class 3
Housing design:	Smooth cylinder
Ambient temperature:	-25 °C
With monitoring function of downstream devices:	no
Pre-failure warning:	no
With restart lock:	no
