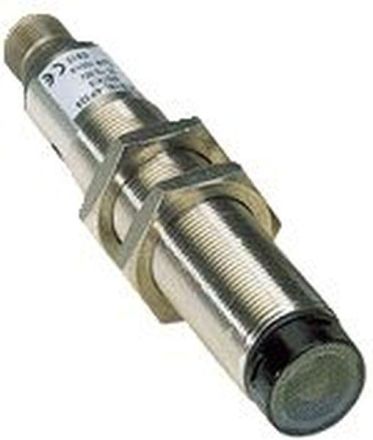

Sick 6027418 VTE18L-4P324 diffuse reflection sensor

Sick 6027418 VTE18L-4P324 diffuse reflection sensor

In stock

SKU: 906100

Price on request

€261.37

€0

Overview

Circular light barriers, V18 laser, max. switching distance: 0 mm ... 400 mm, sensor principle: reflection light sensor, detection principle: energetic, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: laser, setting: cable, teach-in button, laser class: 1

Property	Value
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	18 mm
Width of sensor:	18 mm
Height of sensor:	97.7 mm
Diameter of sensor:	18 mm
With analog communication interface:	no
With communication interface RS-422:	no
Max. Switching distance:	300 mm
Response time:	0.625 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With communication interface SSI:	no
With monitoring function of downstream devices:	no
Analog output 0 V ... 10 V:	no
Wavelength of the sensor:	650 nm
With communication interface RS-232:	no
With communication interface AS-Interface:	no
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical Connection:	M12 connector
Switching output design:	PNP
Equipment protection class:	Protection class 3
Housing design:	Smooth cylinder
Laser protection class:	Class 1
Light type:	Polarized red light
Switching frequency:	800 Hz
Voltage type:	DC
Ambient temperature:	-15 °C
Pre-failure warning:	no
Housing material:	metal
With time function:	no
