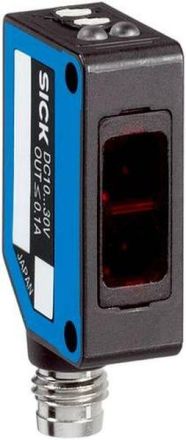

Sick 6030709 WL100L-F2131 reflective photoelectric sensor

Sick 6030709 WL100L-F2131 reflective photoelectric sensor

In stock

SKU: 905939

Price on request

€241.87

€0

Overview

Miniature light barriers, W100 laser, max. switching distance: 0.08 m ... 12 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: PNP, switching type: light/dark switching, connection type: connector M8, 3-pin, light transmitter: laser, setting: potentiometer, laser class: 1, included in delivery: stainless steel mounting bracket (1.4301/304) BEF-W100-A, reflector P250F

Property	Value
Rated switching distance:	80 mm
Max. switching distance:	12000 mm
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP65
Height of sensor:	31 mm
Width of sensor:	11 mm
Length of sensor:	20 mm
Reaction time:	0.25 ms
Switching frequency:	2000 Hz
Laser protection class:	Class 1
Type of voltage:	DC
Material of the housing:	Plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light unpolarized
Material of the optical Surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	M8 connector
Design of the switching output:	PNP
Housing design:	Cuboid
Ambient temperature:	-10 °C
With monitoring function for downstream devices:	no
Pre-failure warning:	no
Sensor wavelength:	650 nm
With restart lock:	no
