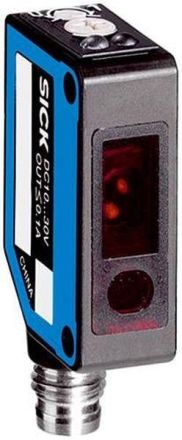

Sick 6033219 WTB8L-P2131 Diffuse reflection sensor

Sick 6033219 WTB8L-P2131 Diffuse reflection sensor

In stock

SKU: 906146

Price on request

€357.97

€0

Overview

Miniature light barriers, W8 laser, switching distance max.: 30 mm ... 300 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: M8 connector, 3-pin, light transmitter: laser, setting: potentiometer, laser class: 1, included in delivery: stainless steel mounting bracket (1.4301/304) BEF-W100-A

Property	Value
Ambient temperature:	-10 °C
Design of the switching output:	PNP
With restart lock:	no
Housing material:	Plastic
Switching frequency:	2000 Hz
Width of sensor:	11 mm
With communication interface RS-232:	no
With communication interface DeviceNet:	no
Analog output -10 V ... +10 V:	no
With communication interface INTERBUS:	no
Design of the electrical connection:	M8 connector
Button function:	light/dark switching
Length of the sensor:	20 mm
With analog communication interface:	no
Wavelength of the sensor:	650 nm
With SSI communication interface:	no
With RS-422 communication interface:	no
Analog output 0 V ... 10 V:	no
With monitoring function of downstream devices:	no
With PROFIBUS communication interface:	no
Suitable for safety functions:	no
With CANOpen communication interface:	no
With AS-Interface communication interface:	no
Housing design:	Cuboid
With other analog output:	no
Pre-failure warning:	no
Laser protection class:	Class 1
Height of the sensor:	31 mm
Design of the switching function:	other
Material of the optical surface:	Plastic
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
Light spot:	1.5 mm²
With communication interface RS-485:	no
Reaction time:	0.25 ms
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
With communication interface SSD:	no
Max. switching distance:	30 mm
Max. Output current:	100 mA
Voltage type:	DC
With time function:	no
Protection class (IP):	IP67
