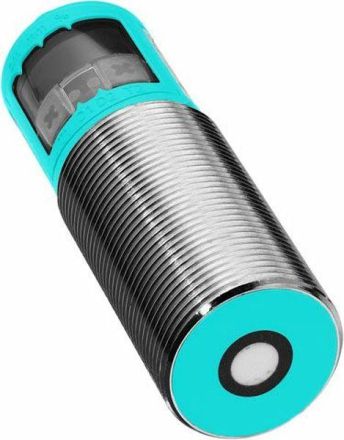

Sick 6036918 UM30-213113 Ultrasonic sensor

In stock
SKU: 905887
€762.06
Into a basketIn the basketGo

Overview

Ultrasonic sensors, UM30, operating range, limit range: 200 mm ... 1,300 mm, 2,000 mm, response time: 92 ms, type of analog output: current output / voltage output, communication interface: -, transmission output: straight, weight: 150 g, connection type: plug, M12, 5-pin

Property Value
Width of the sensor: 30 mm
Height of the sensor: 30 mm
Length of the sensor: 84 mm
Design of the electrical Connection: Axial connector
Housing design: Smooth cylinder
Ambient temperature: -25 °C
Supply voltage: 9 V
Relative repeat accuracy: 0.15 %
Type of voltage: DC
Synchronization possible: no
Housing material: Plastic

Characteristics

Supply voltage9 V
HABUM30-213113
ManufacturerSick
HAN6036918
GTIN4047084241673
Design of the electrical connectionConnector axial
Width of the sensor30 mm
Housing designCylinder smooth
Height of the sensor30 mm
Length of the sensor84 mm
Voltage typeDC
Ambient temperature-25°C
Supply voltage9V
Housing materialPlastic
