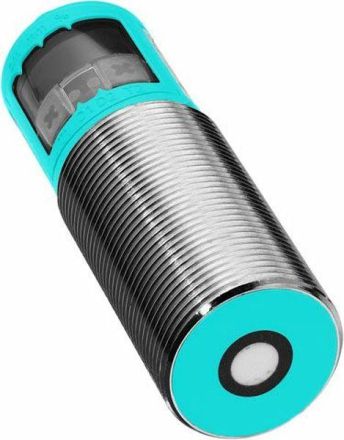

Sick 6037666 UM30-213112 Ultrasonic sensor

In stock
SKU: 905886
€567.28
Into a basketIn the basketGo

Overview

Ultrasonic sensors, UM30, operating range, limit range: 200 mm ... 1,300 mm, 2,000 mm, response time: 92 ms, digital output: 2 x PNP, communication interface: -, transmission exit: straight, weight: 150 g, connection type: plug, M12, 5-pin

Property Value
Width of the sensor: 30 mm
Height of the sensor: 30 mm
Length of the sensor: 84 mm
Design of the electrical connection: Axial connector
Housing design: Smooth cylinder
Max. Output current: 200 mA
Ambient temperature: -25 °C
Supply voltage: 9 V
Relative repeatability: 0.15 %
Switching frequency: 8 Hz
Type of voltage: DC
Synchronization possible: no
Housing material: plastic

Characteristics

Switching frequency8 Hz
Supply voltage9 V
HABUM30-213112
ManufacturerSick
HAN6037666
GTIN4047084241635
Design of the electrical connectionConnector axial
Width of the sensor30 mm
Housing designCylinder smooth
Height of the sensor30 mm
Length of the sensor84 mm
Voltage typeDC
Ambient temperature-25°C
Supply voltage9V
Housing materialPlastic
