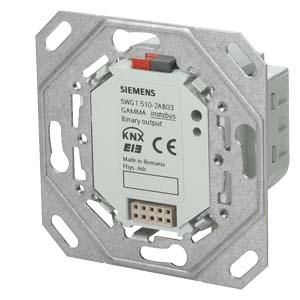

Siemens 5WG1510-2AB03 binary output device

In stock
SKU: 370854
€108.24
Into a basketIn the basketGo

Overview

Contact rated voltage AC 230 V, - 2 potential-free relay contacts, - Contact rated current 10 A, - Screwless terminals for connecting and looping through untreated conductors, single-wire, fine-wire and multi-wire, 0.5...2.5 mm2 diameter, - Electronics operated via bus voltage, - Integrated bus coupler, bus connection via bus terminal, - For installation in flush-mounted device boxes with a diameter of 60 mm and a depth of 60 mm

Property Value
Max. Number of switching outputs: 2
Mounting type: Flush-mounted
Protection class (IP): IP20
Max. switching capacity: 2300 W
KNX bus system: yes
Max. Switching current: 10 A
Bus system radio bus: no
Bus system Powernet: no
With bus connection: yes
Bus system LON: no
Other bus systems: without
On-site/manual operation: no
With LED display: no
Suitable for C load: no
Rated current: 10 A
Rated operating voltage: 230 V
Different phases can be connected: no
Modular expansion option: no
KNX radio bus system: no
Bidirectional radio: no
Removable bus module: no
Output power: 2300 W
Min. depth of the device socket: 60 mm

Characteristics

Output power2300 W
HAB5WG1510-2AB03
ManufacturerSIEMENS
HAN5WG1510-2AB03
GTIN4001869436289
Other bus systemsWithout
Rated operating voltage230V
Rated current10A
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalNo
Suitable for C-loadNo
Max. switching capacity2300W
Min. depth of the device box60 mm
With bus connectionYes
With LED displayNo
Mounting typeFlush-mounted
IP protection)IP20
