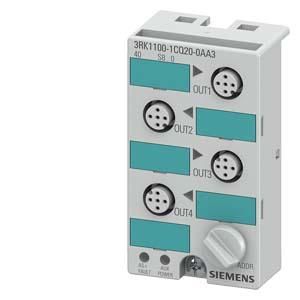

Siemens 3RK1100-1CQ20-0AA3 AS-Interface compact module IP67

Siemens 3RK1100-1CQ20-0AA3 AS-Interface compact module IP67

In stock

SKU: 349455

Price on request

€189.26

€0

Overview

AS-i compact module K45 digital 4DQ, IP67 4 x output, 1 A DC 24 V maximum 3 A for all outputs 4 x M12 socket mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately

Property	Value
Output current:	1 A
Type of supply voltage:	DC
Width:	45 mm
Height:	80 mm
Depth:	30 mm
DIN rail mounting possible:	no
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	yes
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Type of output voltage:	DC
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Type of input voltage:	DC
Short-circuit protection, outputs available:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
With optical interface:	no
Associated equipment (Ex ib):	no
Explosion protection category for Gas:	without
Explosion protection category for dust:	without
Wireless standard GSM:	no
Digital inputs configurable:	no
Wireless standard GPRS:	no
Number of digital outputs:	4
Digital outputs configurable:	no
Wireless standard UMTS:	no
