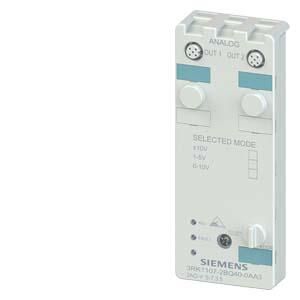

Siemens 3RK1107-2BQ40-0AA3 compact module IP67 analog 2AA

Siemens 3RK1107-2BQ40-0AA3 compact module IP67 analog 2AA

In stock

SKU: 378821

Price on request

€394.12

€0

Overview

AS-i compact module K60 analog 2AQ, IP67 2x 1 output, voltage +/- 10 V 1..5 V for 2-wire actuators 2 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately

Property	Value
Height:	152 mm
Width:	60 mm
Depth:	29 mm
Output, voltage:	yes
Supports protocol for SafetyBUS p:	no
Wireless standard WLAN 802.11:	no
Supports protocol for DeviceNet:	no
Supports protocol for KNX:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Front installation possible:	no
Supports protocol for TCP/IP:	no
Rack mounting possible:	no
Supports protocol for SUCONET:	no
Resolution of analog inputs:	12 bit
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard Bluetooth:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
IO-Link Master:	no
Supports protocol for ASI:	yes
Supports protocol for Foundation Fieldbus:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	no
Output signal configurable:	yes
Mounting rail possible:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Number of analog outputs:	2
Wireless standard GSM:	no
Wireless standard GPRS:	no
Analog outputs configurable:	yes
UMTS radio standard:	no
