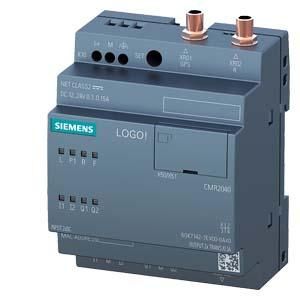

Siemens 6GK7142-7EX00-0AX0 communication module LOGO! CMR2040

Siemens 6GK7142-7EX00-0AX0 communication module LOGO! CMR2040

In stock

SKU: 336871

Price on request

€546.02

€0

Overview

LOGO! CMR2040 communications module for connecting LOGO! 8 to LTE network 1 RJ45 port for Ind. Ethernet connection to LOGO! 8 2xDI 2xDO Read/write access to LOGO! variables SMS sending/receiving Email sending Position detection GPS Time synchronization/forwarding with real-time clock Configuration/diagnosis via web interface Remote access via OpenVPN/HTTP, DYNDNS, please note country approval! Manual available for download The LOGO! CMR 2020 remote communications module enables SMS communication for alarms and remote control via cell phone in GSM/GPRS mobile networks, position determination via GPS, and worldwide time synchronization. The LOGO! CMR 2040 remote communications module enables SMS communication for alarms and remote control via cell phone in LTE mobile networks, position determination via GPS, and worldwide time synchronization. The remote communication module LOGO! CMR 2020 enables SMS communication for alarm and remote control via cell phone in GSM/GPRS mobile networks, position determination via GPS and worldwide time synchronization. The remote communication module LOGO! CMR 2040 enables SMS communication for alarm and remote control via cell phone in LTE mobile networks, position determination via GPS and worldwide synchronization of the time.

Property	Value
Height:	90 mm
Width:	71.5 mm
Depth:	58.2 mm
Supports protocol for other bus systems:	yes
Wireless standard Bluetooth:	no
With electrical isolation:	no
Redundancy capability:	no
Supports protocol for PROFIBUS:	no
Supports protocol for SERCOS:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for SUCONET:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for ASI:	no
Supports protocol for CAN:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for PROFINET IO:	no
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard WLAN 802.11:	no
Supports protocol for KNX:	no
Supports protocol for PROFIsafe:	no
Performance level according to EN ISO 13849-1:	without
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for MODBUS:	no
Supports protocol for Data-Highway:	no
Suitable for safety functions:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
Number of HW interfaces wireless:	2
Number of HW interfaces Industrial Ethernet:	1
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Radio standard GSM:	yes
SIL according to IEC 61508:	without
Radio standard GPRS:	yes
Radio standard UMTS:	yes
