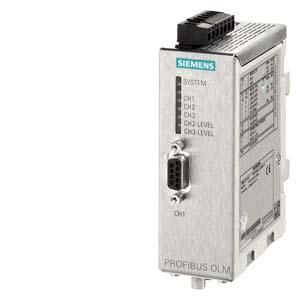

Siemens 6GK1503-3CC00 Optical Link Module OLM/G12-1300 V4.0 PROFIBUS

In stock

SKU: 345775

Price on request

€3,667.57

€0

Overview

PROFIBUS OLM/G12-1300 V4.0 Optical Link Module with 1 RS-485 and 2 glass fiber optic interfaces (4 BFOC sockets), 1300Nm wavelength for long distances with signaling contact and measuring output. SIMATIC NETPROFIBUS OLM/G12-1300 V4.0

Property	Value
Secondary side service:	PROFIBUS
Primary side service:	PROFIBUS
Transmission rate:	12000.0 kBit/s
Primary side connection type:	D-Sub socket 9-pin
Secondary side connection type:	other
Bidirectional:	yes
Overcurrent protection:	no
Rated current consumption:	200.0 mA
