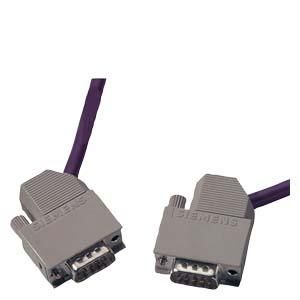

Siemens 6XV1830-1CH15 connecting cable 9-pin 1.5m 830-1T

In stock
SKU: 384351
€74.49
Into a basketIn the basketGo

Overview

Connecting cable 830-1T for PROFIBUS for connecting end devices to OLM and OBT, pre-assembled with 2 Sub-D connectors, 9-pin, cable terminated at both ends, 1.5m. SIMATIC NETConnecting cable 830-1TPre-assembled cable for the quick and cost-effective connection of PROFIBUS participants to optical link modules or optical bus terminals.Error-free connection of end devices using pre-assembled connecting cables. Secure data transmission to the end user in EMC-stressed environments through direct cable shielding and termination.

Property Value
Number of cores: 2
Outer diameter approx.: 5.7 mm
Stranding element: Pairs
Low smoke according to EN 61034-2: no
Conductor diameter: 0.61 mm
Number of stranding elements: 1
Sheath material: Polyvinyl chloride (PVC)
Permissible external cable temperature during assembly/handling: -40 to 70 °C
Permissible external cable temperature after assembly without vibration: -40 to 70 °C
Sheath material specification: other
Fire behavior class according to EN 13501-6: none
Min. permissible bending radius, flexible use with forced guidance: 86 mm
Min. permissible bending radius, flexible use/free movement: 86 mm
Min. permissible bending radius, stationary use/permanently installed: 86 mm
Laying in the ground: no

Characteristics

Sheath materialPolyvinyl chloride (PVC)
Outer diameter approx.5.7 mm
Conductor diameter0.61 mm
HAB6XV1830-1CH15 9-pin 1.5m 830-1T
ManufacturerSIEMENS
HAN6XV1830-1CH15
GTIN4019169400756
Wire number2
