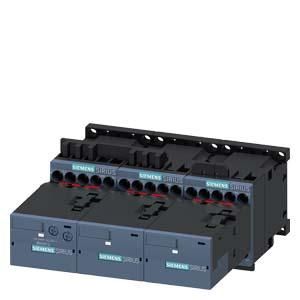

Star-delta combination AS-i AC-3, 7.5 kW/400 V, DC 24 V 3-pole, size S00 screw connection electrical and mechanical interlock 3 S integrated Star-delta combination SIRIUS 3RA24 for gentle starting of three-phase asynchronous motors. The star-delta combination 3RA24 is a tested and factory-preassembled combination of three 3RT2 contactors that are already fully wired and mechanically and electrically interlocked. The function module with integrated control logic and time setting that is also included replaces the entire wiring in the control circuit. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. The star-delta combinations 3RA24 are available with AC and DC operation in sizes S00 to S3. They are available with screw and spring-loaded connection technology for mounting on a DIN rail or screw fastening. Variants for connection to IO-Link or AS-Interface are also available. The accessories for the 3RT2 contactors are standardized for all sizes and can also be used for the contactor combinations. The 3RA24 star-delta combinations replace the proven 3RA14 series. Simple, efficient, always up-to-date - the SIRIUS modular system.
