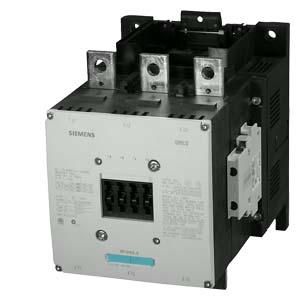

Siemens 3RT1076-6LA06 contactor 2NO 2NC 3-pole S12

Power contactor, AC-3 500 A, 250 kW / 400 V without coil Auxiliary contacts 2 NO + 2 NC 3-pole, size S12 Main conductor: busbar connections Auxiliary conductor: screw connections SIRIUS 3RT1 power contactor for switching motors.The 3RT1 contactors are part of the SIRIUS modular system with its optimally coordinated products. They impress with high performance combined with a compact design and high contact reliability. They can be combined in many ways with other components in the load feeder. The contactors offer the right connection to the controller for every application (directly or via PLC input). Pre-assembled auxiliary switches reduce the complexity of your setup. The 3RT1 contactors are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4ready.They are available in various sizes and in a wide performance range. They can be operated with AC or DC, some variants have a wide voltage range and a PLC control input. In the main circuit, the devices can be connected via rails or box terminals. For the auxiliary and control circuits, they are also available with a spring-loaded connection for a quick, maintenance-free and vibration-proof connection. There is a wide range of accessories for these contactors, such as wiring kits that significantly reduce the wiring effort, auxiliary switches or terminal covers. Simple, efficient, always up-to-date - the SIRIUS modular system.
