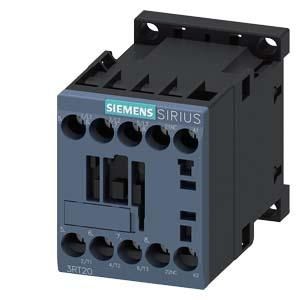

HAB3RT2018-1AP02 7.5kW 1NC 3-pole AC230V
HAN3RT2018-1AP02
GTIN4011209785045
Number of auxiliary contacts as normally closed1
Number of normally open contacts as main contacts3
Rated operating power NEMA7.354987499kW
Rated operational power at AC-3, 400 V7.5kW
Rated operational current Ie at AC-1, 400 V22A
Rated operational current Ie at AC-3, 400 V16A
Rated operational current Ie at AC-4, 400 V11.5A
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz230V
Suitable for series installationYes
Voltage type for actuationAC
