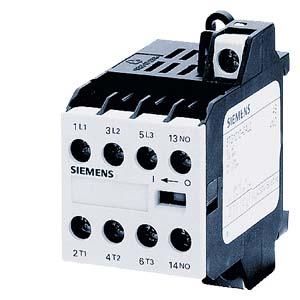

Power relay, AC-3 8, 4A, 4kW / 400V 4S, AC 24V, 45...450Hz 3-pole, screw connection miniature contactor SIRIUS 3TG10 for switching control signals in the control circuit, e.g. for household appliances, lifting equipment or in the installation area. The 3TG10 miniature contactors are characterized by their small width. They operate hum-free, have a built-in auxiliary switch and can be mounted in any position.The 3TG10 miniature contactors are available in AC or DC operation, for various operating currents, with 4 NO contacts or 3 NO contacts and one NC contact and are available with screw or flat plug connection.Simple, efficient, always up-to-date - the SIRIUS modular system.
| Property | Value |
| Number of NO contacts as main contacts: | 3 |
| Number of auxiliary contacts as NO contacts: | 1 |
| Rated operating power at AC-3, 400 V: | 4 kW |
| Rated operating current Ie at AC-1, 400 V: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 8.4 A |
| Type of voltage for actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Suitable for series installation: | yes |
| Rated operating power NEMA: | 3.677493749 kW |
