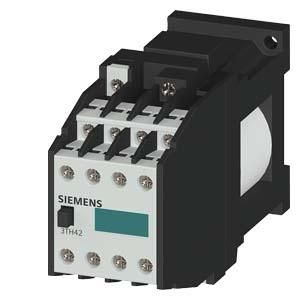

Siemens 3TH4280-0LB4 auxiliary contactor DC 24V screw connection

In stock
SKU: 376134
€122.11
Into a basketIn the basketGo

Overview

Auxiliary contactor, 80E, DIN EN 50011, 8 NO, screw connection DC operation DC 24 V operating range 0, 7...1, 25xUS connected with varistor Auxiliary contactor 3TH4 for switching the control signals in the control circuit. The auxiliary contactors 3TH4 have standard connection designations and reliable connection technology. By multiplying the outputs, it is possible to switch up to 10 auxiliary circuits simultaneously. The contacts are also designed as SUVA variants with positive guidance for safety applications. The devices are climate-resistant, have a high level of contact reliability and are suitable for worldwide use thanks to corresponding approvals (e.g. IEC and UL/CSA).The 3TH4 contactor relays are available in AC or DC operation in various versions with 8 or 10 poles.Accessories include surge suppressors, delayers and coupling elements.

Property Value
Number of auxiliary contacts as normally open: 8
Rated operating current Ie, 400 V: 6 A
Rated control supply voltage Us at DC: 24 V
Interface: no
Voltage type for actuation: DC
With LED display: no

Characteristics

HAB3TH4280-0LB4 DC 24V screw connection
ManufacturerSIEMENS
HAN3TH4280-0LB4
GTIN4011209240315
Number of auxiliary contacts as normally open8
Rated operational current Ie, 400 V6A
Rated control supply voltage Us at DC24V
With LED displayNo
InterfaceNo
Voltage type for actuationDC
