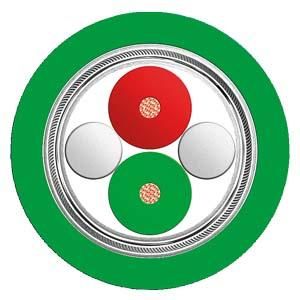

Siemens 6XV1830-3GH10 FESTOON cable PROFIBUS 2-wire shielded

In stock
SKU: 364756
€8.61
Into a basketIn the basketGo

Overview

PROFIBUS FESTOON Cable GP for garland suspension, 2-core shielded, max. acceleration: 4m/QS, min. 5 million bending cycles, sold by the meter, delivery unit: max. 1000m, minimum order quantity: 20m. SIMATIC NETPROFIBUS Festoon Cable GPFlexible bus cable for use with constant movement in a cable trail, garland use. Time saving through simple and quick on-site assembly. Reliable shield contact and strain relief as well as good EMC shielding. Network immune to interference thanks to shielded, twisted two-wire cable. Consistent grounding concept can be implemented via the outer shield of the bus cable and via the grounding terminals of the bus terminals. Silicone-free, therefore suitable for use in the automotive industry (e.g. paint shops). Easy length determination thanks to printed meter markings.

Property Value
Number of cores: 2
Outer diameter approx.: 8 mm
Stranding element: pairs
Low smoke according to EN 61034-2: no
Sheath color: other
Conductor diameter: 0.67 mm
Number of Stranding elements: 1
Sheath material: Polyvinyl chloride (PVC)
Permissible external cable temperature during assembly/handling: -40 °C
Permissible external cable temperature after assembly without vibration: -40 to 80 °C
Sheath material specification: other
Fire behavior class according to EN 13501-6: Eca

Characteristics

Sheath materialPolyvinyl chloride (PVC)
Outer diameter approx.8 mm
Conductor diameter0.67 mm
HAB6XV1830-3GH10 PROFIBUS 2-wire shielded
Minimal order20 meters
ManufacturerSIEMENS
HAN6XV1830-3GH10
GTIN4019169400732
Wire number2
Coat colorOther
