Siemens 6XV1870-2D Industrial Ethernet trailing cable GP 2x2 PROFINET Type C

In stock

SKU: 357073

Price on request

€4.47

€0

Overview

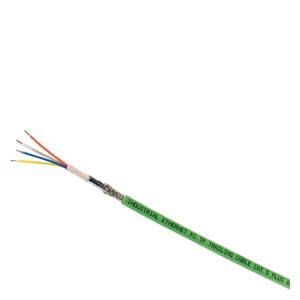

Industrial Ethernet FC TP Trailing Cable GP 2x2 (PROFINET Type C), TP installation cable for drag chain use, 4-core, CAT. 5, sold by the meter (3 million bending cycles), delivery unit max. 1000m, minimum order quantity 20m. SIMATIC NETIE FC TP Trailing Cable GP 2x2 (Type C)Suitable for use in drag chains, e.g. for constantly moving machine parts.Time saving through simple and quick on-site assembly. Interference-resistant network thanks to double-shielded cables and consistent grounding concept. Silicone-free, making it suitable for use in the automotive industry (e.g. paint shops). Exceeds category 5 (Cat5e) of the international cabling standard ISO/IEC 11801 and EN 50173. Easy length determination thanks to printed meter marking.

Property	Value
Number of cores:	4
Outer diameter approx.:	6.5 mm
Category:	5E
Low smoke according to EN 61034-2:	no
Conductor diameter:	0.75 mm
Number of Stranding elements:	2
Sheath material:	Polyvinyl chloride (PVC)
Perm. Cable external temperature during assembly/handling:	-10 to 60 °C
Perm. External cable temperature after installation without vibration:	-25 to 75 °C
NVP value:	66 %
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Eca
Min. permissible bending radius, flexible use with forced guidance:	49 mm
Min. permissible bending radius, flexible use/free movement:	49 mm
Min. permissible bending radius, stationary use/permanently installed:	49 mm
Laying in the ground:	no
