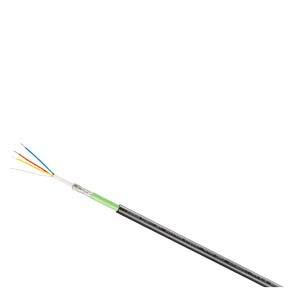

Siemens 6XV1871-2G underground cable 2x2 4-core shielded

In stock
SKU: 371069
€4.04
Into a basketIn the basketGo

Overview

IE Ground Cable 2x2 underground cable, 4-core, shielded, sold by the meter, delivery unit max. 1000m, minimum order quantity 20m. SIMATIC NETIE TP Ground Cable 2x2 (Type C) bus cable for permanent installation in the ground, with additional PE outer jacket. Time saving thanks to simple and quick on-site assembly. Network immune to interference thanks to double-shielded cables and consistent grounding concept. Silicone-free, making it suitable for use in the automotive industry (e.g. paint shops). Exceeds category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173. Easy length determination thanks to printed meter marking.

Property Value
Number of cores: 4
Outer diameter approx.: 9 mm
Category: 5E
Low smoke according to EN 61034-2: no
Sheath color: black
Conductor diameter: 0.64 mm
Number of stranding elements: 2
Permissible external cable temperature during assembly/handling: -40 to 50 °C
Permissible external cable temperature after assembly without vibration: -40 to 70 °C
NVP value: 64 %
Fire behavior class according to EN 13501-6: Fca
Min. permissible bending radius, flexible use with forced guidance: 80 mm
Min. permissible bending radius, flexible use/free movement: 80 mm
Min. permissible bending radius, stationary use/fixed installation: 80 mm
Laying in the ground: yes

Characteristics

Outer diameter approx.9 mm
Category5E
Conductor diameter0.64 mm
HAB6XV1871-2G 2x2 4-wire shielded
Minimal order20 meters
ManufacturerSIEMENS
HAN6XV1871-2G
GTIN4019169854887
Wire number4
Coat colorBlack
