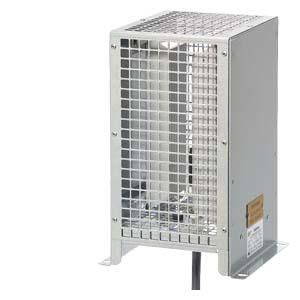

MICROMASTER 4 braking resistor 380-480V 27R 24000W PK 1200W Kont. 515x 270x 175mm HxWxD IP20 braking resistor SINAMICS braking resistor for the modular frequency converter SINAMICS G120, as well as the MICROMASTER 4. The braking resistors are designed for use with the MICROMASTER 440 converter series, housing sizes A to F with integrated braking chopper and enable rapid braking of loads with a high moment of inertia. During braking of the motor and load, excess energy is fed back to the converter. This causes a voltage increase in the DC intermediate circuit. The converter diverts the excess energy to the externally mounted braking resistor. The braking resistor can be used for the voltage range 200 V to 480 V. SINAMICS - simply my drive.
