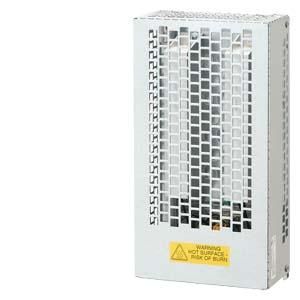

SINAMICS braking resistor R=30Ohm P_duration=925W P_max=18500W/12s/5% ED stand-alone braking resistor SINAMICS braking resistor for the modular frequency converter SINAMICS G120 and the compact converter SINAMICS G120C. The braking resistor dissipates the excess energy of the DC link.The braking resistors are intended for use with the Power Modules PM240-2 and PM240 (mounted to the side next to the Power Modules), which have an integrated braking chopper and cannot feed regenerative energy back into the grid.For regenerative operation, e.g. braking a flywheel with a large moment of inertia, a braking resistor must be connected which converts the resulting energy into heat. A plug-in Braking Module is available as an option for the FSGX frame size. SINAMICS - simply my drive.
