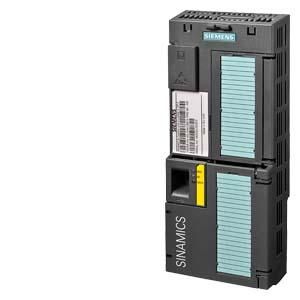

Siemens 6SL3244-0BB13-1PA1 Control unit CU240E-2 DP-F E-type

SINAMICS G120 Control Unit CU240E-2 DP-F E-Type Safety integrated STO SS1, SLS, PROFIBUS-DP 6DI, 3DO, 2AI, 2AO, max. 3F-DI PTC/KTY interface USB and SD/MMC interface Protection class IP20 Ambient temperature 0 to +50°C without Power Module Control Unit SINAMICS Control Unit CU240E-2 DP-F for standard applications in general mechanical engineering for the modular frequency converter SINAMICS G120. The Control Unit CU240E-2 is part of the modular frequency converter SINAMICS G120 (consisting of power unit, control unit, operator panel). The control unit is designed for all common applications with V/f or vector control. This includes, for example, sensorless basic applications in general mechanical engineering. The CU240E-2 has the integrated safety function Safe Torque Off (STO) as standard. In addition, the control unit has the integrated safety functions SS1, SLS, SDI and SSM and is therefore versatile. The CU240E-2 control unit controls and monitors the power module and the connected motor in several selectable control modes. It enables communication with a local or central control system as well as with monitoring devices and is used to connect all process-relevant auxiliary units and external components such as sensors, valves, contactors, etc. The I/O interface, the fieldbus interfaces and the additional software functions optimally support the application in general mechanical engineering. For intuitive series commissioning, a card slot for cloning parameter sets is available. The communication interface of the converter is determined by selecting the CU240E-2. The following integrated communication variants are available: CU240E-2 with the protocols USS, Modbus RTU, CU240E-2 DP PROFIBUS and CU240E-2 PN PROFINET, EtherNet/IP. The control unit can be operated with the following SINAMICS power units: PM240-2 (0.55 kW to 132 kW) and PM240 (up to 250 kW). SINAMICS - the universal drive family for every application area
