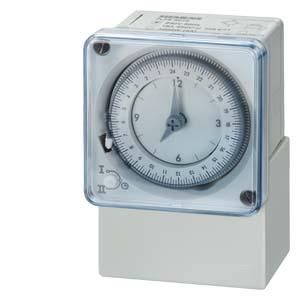

Siemens 7LF5301-0 synchronous timer

In stock
SKU: 345509
€64.87
Into a basketIn the basketGo

Overview

Synchronous timer day 1 changeover contact 230V/50Hz surface-mounted Mechanical timer SENTRON 7LF5 for the time-controlled switching of electrical consumers, e.g. lighting or industrial control systems. The mechanical timers from Siemens are particularly robust. The 7LF5 timers are available as synchronous or quartz timers for DIN rail or wall mounting with different time ranges and with different auxiliary contacts. 7LF timers - safety, comfort and energy saving.

Property Value
Number of channels: 1
Protection class (IP): IP20
24 h program: yes
Manual operation: yes
Supply voltage: 230 V
Type of supply voltage: AC
Frequency of supply voltage: 50 Hz
Shortest switching time channel 1: 30 min
Mains synchronous: yes
Weekly program: no
Nominal switching current at 250 V AC: 16 A
Annual program: no
Quartz-controlled: no
Automatic summer/winter time changeover: no
Height: 110 mm
Width: 69 mm
Depth: 34 mm
Program disk division 1: 10 min
Switching preselection: yes
Potential-free switching contact: yes
60 min program: no

Characteristics

Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
HAB7LF5301-0
ManufacturerSIEMENS
HAN7LF5301-0
GTIN4001869335704
Width69 mm
Height110 mm
IP protection)IP20
Depth34 mm
Supply voltage230V
Siemens 7LF5301-0 synchronous timer
Siemens 7LF5301-0 synchronous timer
€64.87
Into a basketIn the basketGo
