Catalog

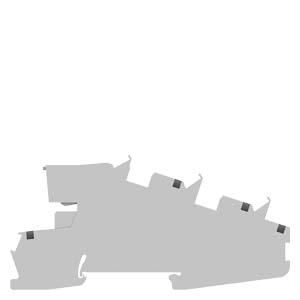

Siemens 8WH6001-4FF00 installation terminal 5.2mm width gray

In stock
SKU: 352330
€4.08
Into a basketIn the basketGo

Overview

Installation terminal PE, L, NT 2.5 mm2, 5.2 mm wide, gray. Terminal block connection technology for various industrial applications and modern building installations from Siemens. Regardless of whether you choose screw, tension spring, push-in or quick connection: All connection technologies can be freely combined with one another. The labeling and test accessories are standardized and can be used across the board. With the terminal blocks from SIEMENS, many applications in industrial, commercial and residential construction can be realized. This means you have the right connection technology for every connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and lines. 3. Realization of a wide range of applications. 4. Convenient and simple assembly and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to contact protection as standard. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Connectable conductor cross-section, single-core: 0.14 to 4 mm²
Rated voltage: 400 V
Connectable conductor cross-section, stranded without wire end ferrule: 0.14 to 4 mm²
Connectable conductor cross-section, stranded with wire end ferrule: 0.14 to 2.5 mm²
Operating temperature: -105 to -60 °C
Rated current In: 24 A
Connectable conductor cross-section, stranded: 0.14 to 1.5 mm²
Number of potentials: 2
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
With PE function: yes
With N-separation slide: yes
N-function possible: yes
Material of the insulating body: other

Characteristics

HAB8WH6001-4FF00 5.2mm width grey
Minimal order50 pcs
ManufacturerSIEMENS
HAN8WH6001-4FF00
GTIN4001869447872
Connectable conductor cross-section solid0.14 to 4 mm²
Connectable conductor cross-section stranded0.14 to 1.5 mm²
Rated voltage400V
Rated current In24A
Operating temperatur-105 to -60 °C
Flammability class of the insulating material according to UL 94V0
Siemens 8WH6001-4FF00 installation terminal 5.2mm width gray
Siemens 8WH6001-4FF00 installation terminal 5.2mm width gray
€4.08
Into a basketIn the basketGo
